Prop Jacks
Leading Manufacturers, Exporters, Wholesaler and Retailer of Push Pull Prop Jack, Scaffolding Prop Jack, Shoring Prop Jack and Telescopic Prop Jack from Ghaziabad.
| Business Type | Manufacturer, Exporter, Supplier |
| Shape | Round |
| Application | Industrial Use |
| Feature | Durable, Fine Finished, Optimum Quality |
| Diameter (Inches) | 40Nb Innter Tube and 50Nb Outer Pipe |
| Surface Finish | Painted |
| Material | Mild Steel |
Features:
- Push-pull prop have double collar that enables walls and columns to be accurately plumbed
- These are used in support with column boxes so as to provide for speedy erection and ease of alignment
| Business Type | Manufacturer, Exporter, Supplier |
| Thickness | 1.8 Mm-3.0 Mm |
| Shape | Round |
| Material | Mild Steel |
| Color | Blue, Green, Orange, Red, Silver, Yellow |
| Application | Casting and Slabbing |
| Surface Treatment | Painted |
| Outer Tube | 60 OD and 48 OD |
| Port | Mundra, Nhava-Shava |
| Payment Terms | L/C, T/T |
| Delivery Time | Depend on your quantity |
| Packaging Details | Loose and Customized |

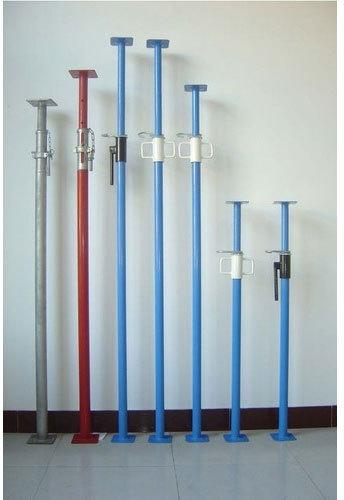

Telescopic Props / Adjustable Props / Jack
We offer high quality range of M.S. Steel Telescopic Props to the customers. This product can be used in all types of building construction; as a result they are widely demanded in the market. In addition, these are ideal to be used in the applications wherever need of adjustable perpendicular load bearing.
These Prop made from 50 NB (60.3mm OD) M. S. Round 'B' class Pipe as outer and 40 NB (48.3mm OD) M.S. Round 'B' class Pipe as inner, which slides in & out for adjusting the height as required with support of malleable cast iron nut and bottom is M.S. Base Plate of size 150*150*6mm with CO2 MIG welded and for top we offer as per the requirement prop head available in L type, Tilt-up (V Type) Head, U Head and Standard Flat Type and painted with ‘Dipped’ using oxford enamel deep blue color. This product is ideally supporting for Slabs, Beams, and Walls.
| Business Type | Manufacturer, Exporter, Supplier |
| Thickness | 3.2mm |
| Shape | Pipe |
| Material | Mild Steel |
| Color | Blue,Green,Orange,Red,Yellow |
| Length | 0-3feet,10-13feet,13-15feet,3-5feet,5-7feet, |
| Plate Size | Base Plate :150x150x6mm, U Size: 100x100x50mm |
| Prop Size | 1.5x1.5mtr, 2x2mtr, 2x2.5mtr, 2x3mtr, 3x3mtr |
| Diameter | 50nb Outer Pipe and 40nb Inner Pipe |
| Application | Construction |
| Surface Type | Color Galvanized |
| Adjustable Length | 3700, 4700, 5700 mm |
| Diameter of Outer Tube | 48 mm /56 mm /60 mm |
| Wall Thickness | 1.5 - 3.2 mm |
These products are the ideal supporting device for the following:
- Formwork to slabs
- Formwork to beams
- Formwork to walls
- Formwork to columns
| Business Type | Manufacturer, Exporter, Supplier |
| Material | Mild Steel |
| Shape | Pipe |
| Color | Blue |
| Dimension | 2x2, 2x3, 3x3 Mtr. |
| Usage/Application | Construction |
| Port | Mundra, Nhava-Shava |
| Payment Terms | L/C, T/T, Other |
| Delivery Time | Depend on your quantity |
| Packaging Details | Loose and Customize |
Telescopic Props / Adjustable Props / Jack
We offer high quality range of M.S. Steel Telescopic Props to the customers. This product can be used in all types of building construction; as a result they are widely demanded in the market. In addition, these are ideal to be used in the applications wherever need of adjustable perpendicular load bearing.
These Prop made from 50 NB (60.3mm OD) M. S. Round 'B' class Pipe as outer and 40 NB (48.3mm OD) M.S. Round 'B' class Pipe as inner, which slides in & out for adjusting the height as required with support of malleable cast iron nut and bottom is M.S. Base Plate of size 150*150*6mm with CO2 MIG welded and for top we offer as per the requirement prop head available in L type, Tilt-up (V Type) Head, U Head and Standard Flat Type and painted with ‘Dipped’ using oxford enamel deep blue color. This product is ideally supporting for Slabs, Beams, and Walls.
